Pneumatic Bottling Valve | Stainless Steel | Lyson - SPECIAL ORDER ONLY

This simple and very accurate device will allow you to bottle honey very precisely without spillage.

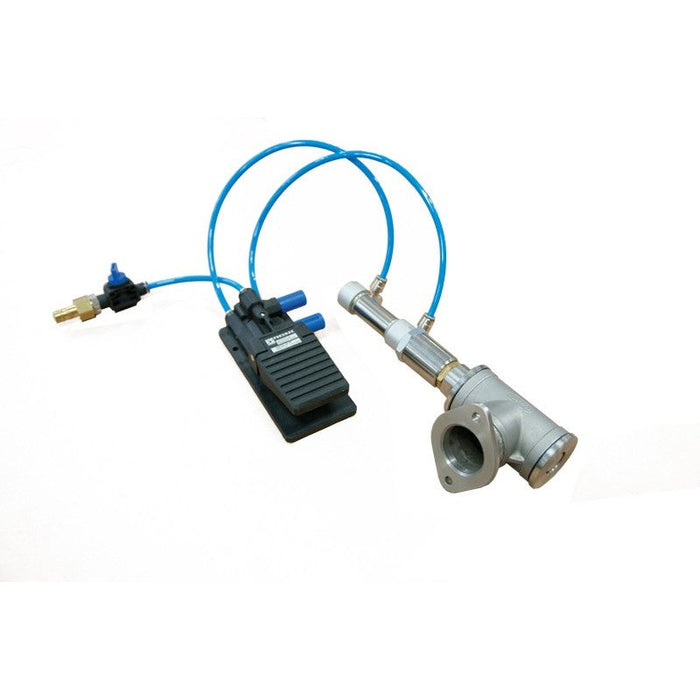

Keep your hands free with this air-actuated bottling valve from LYSON. The valve is based on LYSON's manual bottling valves but this unit has a foot-operated air piston to open/close the valve.

The valve bolts to a honey gate flange on your bottling tank. The valve flange has a flat mounting surface. The tank honey gate provides the O-ring to seal the joint

Product Specifications:

• Valve height: 11-1/2"
• Valve width: 3"
• Valve depth: 3-1/2"
• Flange bolt maximum diameter: 7/16"
• Flange bolt spacing centerline to centerline: 2-1/2" to 2-13/16"
• Flange flat surface diameter (mating O-ring dimension) 1-5/8" to 2-1/8"
• Valve tapered plug small diameter: 3/4"
• Foot pedal: 3" W x 5" L x 2-1/8" H
• Tubing length between valve and foot pedal: 36"
• Maximum allowed air pressure: 140 psig
• Normal operating air pressure: 85 psig
• Tubing air connection: 1/4" male NPT
• Air to open valve
• Spring closes with air assist
• Requires compressed air source (not included)
• Weight: 5 lb 5 oz

Please email info@dancingbeemanitoba.com or call 204-866-2402 to order!
